Intermatic T104M Timer Mechanism
Intermatic T104M 24-hour mechanical timer mechanism for 208–277 VAC, 60 Hz systems. Features DPST switching, up to 12 ON/OFF operations per day, a manual override, and one ON and one OFF tripper. Mechanism only; enclosure not included.
$79.95
Shipping Information
| Weight | 1.63 lbs |
|---|---|
| Dimensions | 10 × 6 × 4 in |
| Model | T104M |
| Timer Type | 24-hour mechanical |
| Input Voltage | 208–277 VAC, 60 Hz |
| Switch Type | DPST |
| Enclosure Included | No — mechanism only |
KEY FEATURES
- 24-hour mechanical timer mechanism.
- Operates at 208–277 VAC, 60 Hz.
- DPST switching.
- Up to 12 ON/OFF operations per day.
- Minimum ON/OFF period of one hour.
- Built-in manual override.
- Includes one ON and one OFF tripper.
- Timer mechanism only; enclosure is not included.
SPECIFICATIONS
- Model: Intermatic T104M
- Product Type: Mechanical timer mechanism
- Operation: 24-hour
- Input Voltage: 208–277 VAC, 60 Hz
- Switch Type: DPST
- Maximum Scheduled Operations: Up to 12 ON/OFF operations per day
- Minimum ON/OFF Time: One hour
- Manual Override: Yes
- Trippers: One ON and one OFF tripper included
- Enclosure: Not included
COMPATIBILITY
The T104M is intended for systems requiring a 208–277 VAC, 60 Hz, DPST mechanical timer.
The mechanism can be installed in most compatible Intermatic enclosures. Verify the voltage, switch type and enclosure compatibility before ordering.

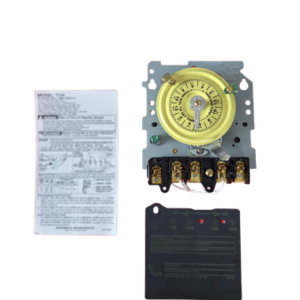

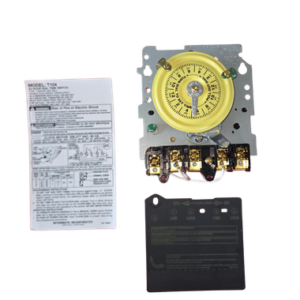

WHAT'S INCLUDED
- One Intermatic T104M timer mechanism
- One ON tripper
- One OFF tripper
An enclosure is not included. If you need a timer already installed inside a plastic enclosure, consider the Intermatic T104P.
HOW TO VERIFY YOUR MODEL
- Locate the model number on your existing mechanism.
- Confirm that your application requires a T104M.
- Confirm 208–277 VAC, 60 Hz operation.
- Confirm that DPST switching is required.
- Check your existing enclosure for compatibility.
- Confirm that you need the timer mechanism only.
FREQUENTLY ASKED QUESTIONS
Does the T104M include an enclosure?
No. It is supplied as the timer mechanism only.
What voltage does it require?
The T104M operates at 208–277 VAC, 60 Hz.
Does it have a manual override?
Yes. It has a built-in manual override.
Are the trippers included?
Yes. One ON and one OFF tripper are included.
What is the difference between the T104M and T104P?
The T104M is the mechanism only. The T104P includes the timer inside a plastic indoor/outdoor enclosure.
SHIPPING INFORMATION
- Shipping Weight: 1.63 lb
- Package Dimensions: 10 × 6 × 4 inches

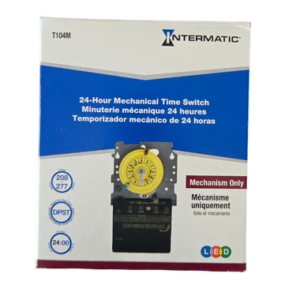

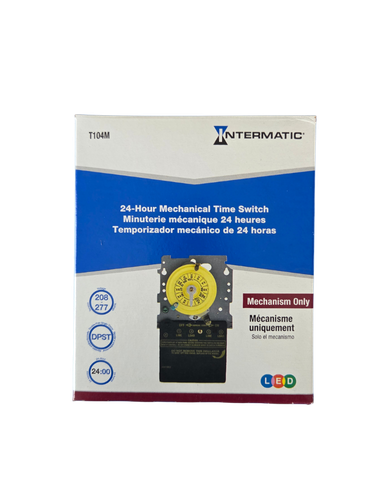

- Packaging: T104M Box
