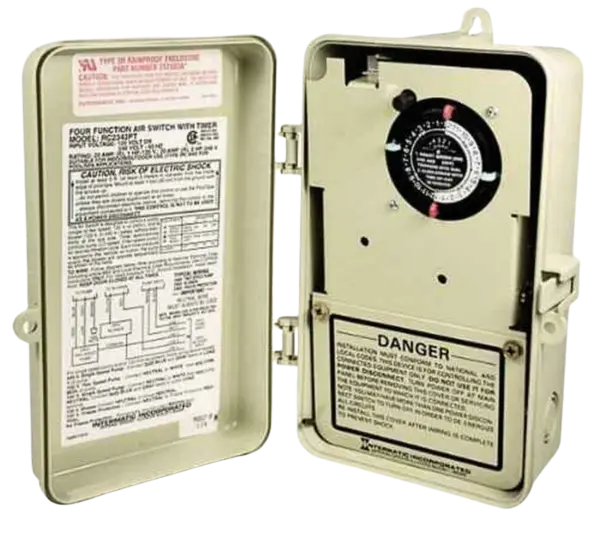

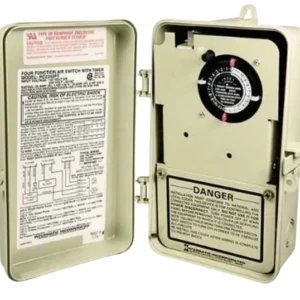

Intermatic RC2343PT Air Switch Timer
Intermatic RC2343PT four-function air switch with a built-in 24-hour timer for remote control of one or two separate loads. Features a Type 3R plastic indoor/outdoor enclosure and supports operation from up to 100 feet away when used with the optional RC117 air hose. A neutral connection is required.
$335.95
Shipping Information
| Weight | 3.75 lbs |
|---|---|
| Dimensions | 12 × 10 × 8 in |
| Packaging | T2343 Box |
KEY FEATURES
- Four-function air switch.
- Built-in 24-hour timer.
- Provides remote control for one or two separate loads.
- Designed for compatible pump and motor-control applications.
- Type 3R plastic indoor/outdoor enclosure.
- Supports operation from up to 100 feet away with an optional RC117 air hose.
- Requires a neutral electrical connection.
SPECIFICATIONS
- Model: Intermatic RC2343PT
- Product Type: Multifunction air switch with 24-hour timer
- Switch Type: Four-function
- Enclosure: Type 3R indoor/outdoor plastic
- Motor Rating: 1 HP at 120 VAC or 2 HP at 240 VAC
- Remote Distance: Up to 100 feet with optional RC117 air hose
- Neutral Connection: Required
- Color: Beige
COMPATIBILITY
Designed for compatible pool, spa, pump and motor-control applications requiring remote air-switch operation and scheduled control.
Before ordering, verify:
- The model number
- Equipment voltage
- Motor load
- Neutral-wire availability
- Number of loads being controlled
- Required air-hose length
WHAT'S INCLUDED
- One Intermatic RC2343PT control assembly
- Type 3R plastic enclosure
The RC117 flexible air hose is sold separately. Any air button, hose or additional accessory is not included unless specifically stated in the product listing.
HOW TO VERIFY YOUR MODEL
- Confirm that the model number is RC2343PT.
- Determine whether one or two loads must be controlled.
- Verify the voltage and motor horsepower.
- Confirm that a neutral connection is available.
- Measure the required remote-control distance.
- Confirm whether an RC117 hose or other accessories must be purchased separately.
FREQUENTLY ASKED QUESTIONS
What does the RC2343PT control?
It provides remote control for one or two separate loads and includes a 24-hour timer.
Can it be installed outdoors?
It is supplied in a Type 3R plastic indoor/outdoor enclosure.
How far away can the air control be located?
It can support operation from up to 100 feet away when used with the optional RC117 air hose.
Is a neutral connection required?
Yes. A neutral electrical connection is required.
Is the RC117 air hose included?
No. Intermatic identifies the RC117 as an optional accessory sold separately.
SHIPPING INFORMATION
- Shipping Weight: 3.75 lb
- Package Dimensions: 12 × 10 × 8 inches
